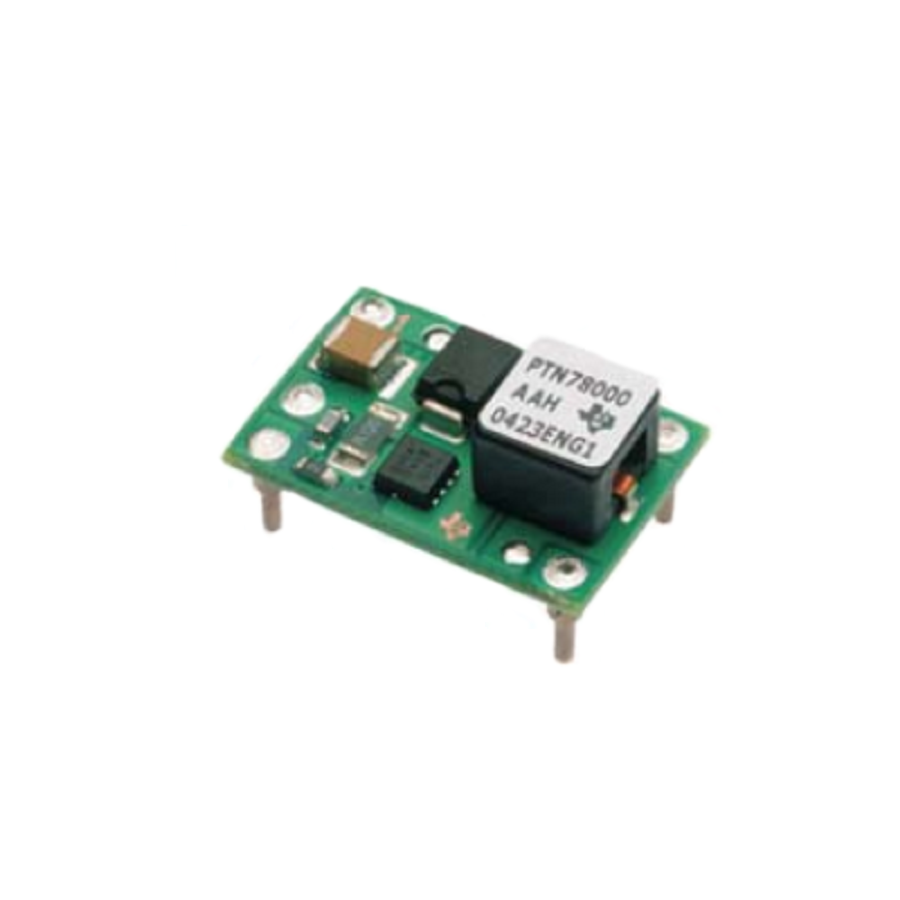

PTN78000AAH
Manufacturer:
Texas Instruments
Mfr.Part #:
PTN78000AAH
Datasheet:
Description:
DC to DC Converters Module-5 Through Hole Min Input Voltage:7 V Max Input Voltage:28.7 V 84 %
| Parameter | Value |
|---|---|
| Length | 18.92 mm |
| Width | 12.57 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Power Rating | 9 W |
| Height | 8.5 mm |
| Packaging | Tray |
| Depth | 12.57 mm |
| Thickness | 8.25 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Min Input Voltage | 7 V |
| Output Current | 1.5 A |
| Output Voltage | -3 V |
| Max Power Dissipation | 9 W |
| Max Output Current | 1.5 A |
| Topology | Boost |
| Max Input Voltage | 28.7 V |
| Number of Outputs | 1 |
| Output Power | 9 W |
| Current - Output 1 | 1.5 A |
| Efficiency | 84 % |
| Voltage - Output 1 | -3 V |
| Min Output Voltage | -15 V |
| Max Input Voltage (DC) | 28.7 V |
| Max Output Voltage | -3 V |
| Max Output Power | 9 W |
| Min Input Voltage (DC) | 7 V |
| Isolation | Non-Isolated |
| Schedule B | 8504409580 |
| Output Current-Channel 1 | 1.5 A |
| Output Voltage-Channel 1 | -15 V to -3 V |
